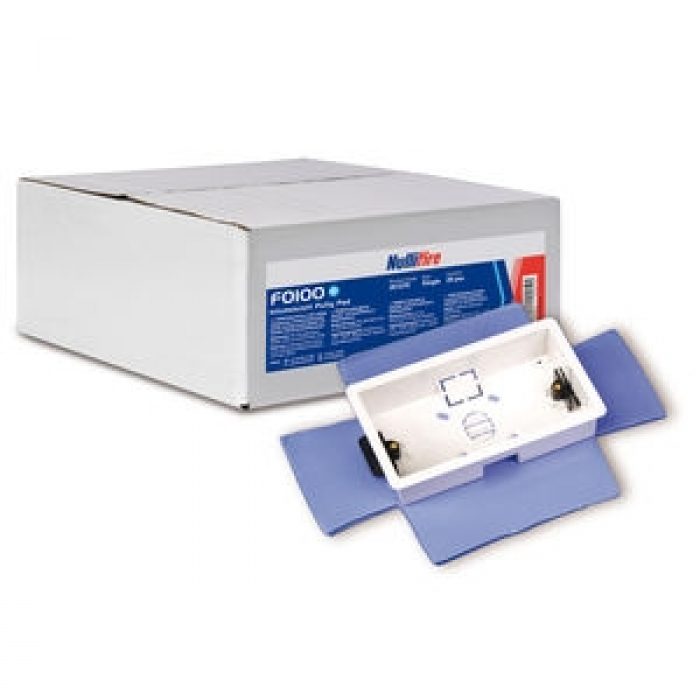

Nullifire FO 100 Putty Pads
FO100 is a non-setting, intumescent, silicone based putty pad for sealing around plastic and metallic electrical backing boxes.
FO100 is designed to reinstate the fire integrity, of masonry walls and drywalls when penetrated by an electrical backing box, eliminating the requirement for a baffle box. This product has also been approved to maintain the acoustic performance of the substrate in accordance with ‘Approved Document E’ Robust Details, and is fully tested to meet the air leakage requirements of ‘Approved Document L’ providing a hermetic seal.
Reinstates fire and acoustic integrity and insulation to the following;
Double/single gang plastic socket
Double/single gang metallic socket
Plasterboard back to back/juxtaposed
Block wall back to back
Typical areas of use include health and leisure facilities, schools, universities, commercial. retail and industrial buildings.
FO100 170 x 170 x 4 mm Single socket
FO101 230 x 170 x 4 mm Twin socket
20 pieces per box
Tested in accordance with EN 1366-3 up to 2 hours Classification EN 13501:2007
Provide an effective barrier to the spread of smoke and fire for up to 2 hours
Reinstates the acoustic integrity of a 65 dB partition (four boxes, two back to back)
Quick and easy to install – no need for expensive baffle boxes
Packaging: FO100 170 x 170 x 4 mm Single socket , FO101 230 x 170 x 4 mm Twin socket 20 pieces per box
